全自動洗脫機Elution ma

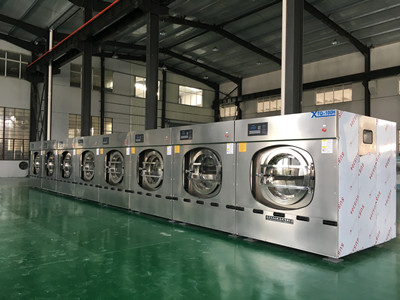

航星洗滌機械設備公司所生產的全自動洗脫機,型號:15kg、20kg、30kg、50kg、70kg、100kg、120kg、150kg
一:全自動洗衣脫水機(洗脫機)用途
全自動洗衣脫水機(洗脫機)用于賓館、酒店、醫院、煤礦、部隊、學校、及水洗廠等行業。懸浮式水洗機是洗滌棉、毛、麻、化
纖等織物的理想設備。
二:結構特點
1.全自動洗衣脫水機(洗脫機)懸浮式水洗機采用變頻調速,模糊控制,操作方便,全自動洗滌、脫水一體化功能。
2.全自動洗衣脫水機(洗脫機)全懸浮結構,震動小,噪聲低。
Automatic washing machine produced by Hangxing Washing Machinery Equipment Co., Ltd. Model: 15kg, 20kg, 30kg, 50kg, 70kg, 100kg, 120kg, 150kg
One: Use of fully automatic washing and dehydrating machine (eluent)
Automatic washing and dehydrating machine (elution machine) is used in hotels, hotels, hospitals, coal mines, military units, schools, and washing plants and other industries. Suspension type washing machine is used for washing cotton, wool, linen, chemical
Ideal equipment for fabrics such as fiber.
Two: Structural characteristics
1. Full-automatic washing and dewatering machine (elution machine) Suspension type washing machine adopts frequency conversion speed regulation, fuzzy control, convenient operation, integrated washing and dehydration integrated functions
2. Full-automatic washing and dewatering machine (eluent) full suspension structure, small vibration and low noise.
三:全自動洗衣脫水機(洗脫機)懸浮式水洗機主要技術參數:
Three: The main technical parameters of the automatic washing and dewatering machine (elution machine) suspension type washing machine:
型號 model | XTQ-100kg | XTQ-70kg | XTQ-50kg | XTQ-30kg | XTQ-15kg |
額定容量Rated capacity kg | 85-100 | 70 | 50 | 30 | 15 |
洗衣缸容量 Washing tank capacity L | 940 | 600 | 430 | 275 | 180 |
最大電機功率 Motor power kw | 11 | 7.5 | 6 | 4 | 2.2 |
電加熱功率 Electric heating power kw | 60 | 45 | 30 | 20 | 10 |
每車耗水量約 Water consumption about kg | 1800 | 1250 | 1200 | 1000 | 300 |
每車耗氣量約 Air consumption about kg | 50 | 45 | 30 | 20 | 15 |
每車耗電量約Power consumption kw | 7.5 | 7.5 | 5.5 | 4.0 | 2.2 |
外形尺寸Dimensions mm (長、寬、高)(Length, width, height)mm | 1760×1915×2100 | 1750×1730×2090 | 1650×1650×1900 | 1410×1430×1760 | 1010×1110×1510 |
整機重量約Machine weight approx. kg | 3130 | 2800 | 2600 | 1900 | 950 |
