隔離式洗衣機 Isolated

醫院用隔離式洗衣機特點

衛生式隔離洗衣機是迎對醫院洗衣房特殊洗滌需求而研發的一款新型洗滌設備

無塵服洗衣機，水洗機，烘干機適用于衛生防疫，藥廠，醫院，無線電子，航空航天，傳染病房，無菌車間等行業。

1、電腦控制，全自動/手動可選，洗滌容量大,洗凈率高,外形美觀。

2、雙側控制，避免洗滌物再污染。
3、結構先進，柔性避震，噪音、震動小。
4、變頻調速，操作簡便，節能省電。
5、適用范圍廣，增加了衛生隔離，滿足對環境有嚴格要求的場合，

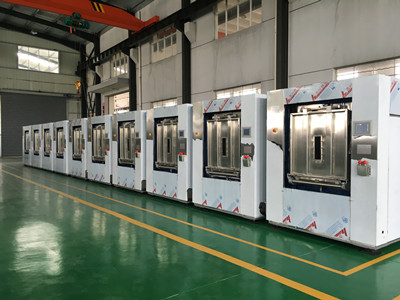

 GLQX型系列衛生隔離式洗衣機是本公司研制并投放市場的衛生型洗滌機械系列產品。該機和隔離墻可將洗衣房分隔成“潔凈區”和“非潔凈區”兩個操作區域。洗滌物由位于“非潔凈區”側機門裝入機內，洗滌完成后從“潔凈區”側機門取出，這樣可以防止細菌和塵埃顆粒從“非潔凈區”流向“潔凈區”，避免了潔凈洗滌物的再污染，是醫院、公共衛生中心、微電子、半導體和光電企業、生物、制藥、化妝品、食品工廠，以及核電站等對洗衣房環境有嚴格的無菌、無塵、防靜電、防輻射要求的場合。

      XTQ-GL系列衛生隔離式洗衣機具有洗滌、脫水的全自動功能，結構合理、操作簡便，是提供衛生安全服務、提升洗滌企業品味和競爭能力的最佳選擇。

 二、主要特點

      1、本設備采用了筒膽式洗衣缸和利用了水流的均勻分布，達到衣物平衡的目的，結合特殊的避震，使整機的震動消失在避震裝置上（簡稱內吸震），保護了設備與周圍環境，方便了用戶。

      2、采用洗衣機觸摸屏式電腦控制器和進口變頻器，具有自動化程度高、安全、穩固可靠，實現初洗、洗滌、消毒、過清、漂白、脫水等全過程的自動化。

      3、本設備設有自動與手動兩種控制方式，手動控制可通過操作按鈕任意選擇洗滌周期、過清次數、脫水時間及水位控制等。

      4、本機外缸采用了雙開門，使用戶裝料和出料分隔于兩個區間，保證了衛生隔離的要求。

      5、本設備各控制閥均采用氣動控制，動作迅速可靠，對周圍環境無污染，亦便于維護。

      6、本設備具有大直徑加水和加蒸汽的裝置，方便用戶自行選擇余地。

      7、本設備洗衣缸、外筒與外蒙板均采用優質不銹鋼結構，表面光滑、強度高、耐腐蝕，美觀耐用。

      8、電氣控制箱與整機連在一起，安裝方便，體積小，減少占地面積，便于運輸和安裝。

      9、本設備為箱底框架結構，無漏水、無污染環境現象，可保持場地清潔。

      10、本設備采用進口名牌交流電機變頻器進行調速，因而僅用一級三角膠帶傳動，簡化了結構，減少了功率損失，其傳動穩定可靠，噪音小，換速時過度均勻，機械故障低，維修方便，功能更完善。

三、      型號及技術參數 Model and technical parameters

Hospital isolated washing machine features

Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms

Dust-free clothes washing machines, washing machines, dryers are suitable for sanitary and epidemic prevention, pharmaceutical factories, hospitals, wireless electronics, aerospace, infectious wards, aseptic workshops and other industries.

Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms

1. Computer controlled, fully automatic / manual optional, large washing capacity, high cleaning rate and beautiful appearance.

2. Bilateral control to avoid re-contamination of laundry.

3. Advanced structure, flexible suspension, low noise and vibration.

4, frequency conversion speed regulation, easy operation, energy saving.

5. It has a wide range of applications, increased hygienic isolation, and meets strict environmental requirements.

 GLQX series sanitary isolated washing machine is the latest sanitary washing machine series product developed and put on the market by our company. The machine and the partition wall can separate the laundry room into two operating areas, "clean area" and "non-clean area". The laundry is loaded into the machine by the machine door located in the "clean area". After washing is completed, it is taken out of the machine door in the "clean area". This can prevent bacteria and dust particles from flowing from the "clean area" to the "clean area". In order to recontaminate clean laundry, hospitals, public health centers, microelectronics, semiconductor and optoelectronic companies, biological, pharmaceutical, cosmetics, food factories, and nuclear power plants have strict sterility, dust-free, and antistatic properties for laundry room environments. , Occasions requiring radiation protection.

      XTQ-GL series sanitary isolated washing machine has full-automatic functions of washing and dewatering, reasonable structure and easy operation. It is the best choice to provide sanitary safety services and improve the taste and competitiveness of washing enterprises.

 Second, the main features

      1. This equipment adopts a tube-type laundry tub and utilizes the uniform distribution of water flow to achieve the purpose of clothing balance. Combined with special shock absorption, the vibration of the whole machine disappears on the shock absorption device (referred to as internal shock absorption) to protect The device and the surrounding environment are convenient for users.

      2. Using washing machine touch screen computer controller and imported inverter, it has high automation, safety, stability and reliability, and realizes the entire process of initial washing, washing, disinfection, cleaning, bleaching and dehydration.

      3. The device is equipped with two control modes, automatic and manual. For manual control, the washing cycle, the number of cleaning cycles, the dehydration time, and the water level control can be selected arbitrarily through the operation button.

      4. The outer cylinder of the machine adopts double-opening door, which separates the user's loading and unloading into two sections, ensuring the requirements of sanitary isolation.

      5. Each control valve of this equipment adopts pneumatic control, which moves quickly and reliably, has no pollution to the surrounding environment, and is easy to maintain.

      6. This equipment has a large diameter water and steam adding device, which is convenient for users to choose.

      7. The equipment's washing tub, outer tube and outer cover are all made of high-quality stainless steel, with smooth surface, high strength, corrosion resistance, beautiful and durable.

      8. The electric control box is connected with the whole machine, which is convenient for installation, small in size, reduced in area, and convenient for transportation and installation.

      9. This equipment has a frame structure at the bottom of the box, which has no water leakage and no pollution to the environment, and can keep the site clean.

      10. This equipment adopts imported brand-name AC motor frequency converter for speed regulation, so it only uses first-level triangular belt drive, which simplifies structure and reduces power loss. Its transmission is stable and reliable, low noise, excessive uniformity when changing speed, and low mechanical failure , Convenient maintenance and more perfect functions.

Hospital isolated washing machine features

Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms

Dust-free clothes washing machines, washing machines, dryers are suitable for sanitary and epidemic prevention, pharmaceutical factories, hospitals, wireless electronics, aerospace, infectious wards, aseptic workshops and other industries.

Sanitary isolated washing machine is a new type of washing equipment developed to meet the special washing needs of hospital laundry rooms

1. Computer controlled, fully automatic / manual optional, large washing capacity, high cleaning rate and beautiful appearance.

2. Bilateral control to avoid re-contamination of laundry.

3. Advanced structure, flexible suspension, low noise and vibration.

4, frequency conversion speed regulation, easy operation, energy saving.

5. It has a wide range of applications, increased hygienic isolation, and meets strict environmental requirements.

 GLQX series sanitary isolated washing machine is the latest sanitary washing machine series product developed and put on the market by our company. The machine and the partition wall can separate the laundry room into two operating areas, "clean area" and "non-clean area". The laundry is loaded into the machine by the machine door located in the "clean area". After washing is completed, it is taken out of the machine door in the "clean area". This can prevent bacteria and dust particles from flowing from the "clean area" to the "clean area". In order to recontaminate clean laundry, hospitals, public health centers, microelectronics, semiconductor and optoelectronic companies, biological, pharmaceutical, cosmetics, food factories, and nuclear power plants have strict sterility, dust-free, and antistatic properties for laundry room environments. , Occasions requiring radiation protection.

      XTQ-GL series sanitary isolated washing machine has full-automatic functions of washing and dewatering, reasonable structure and easy operation. It is the best choice to provide sanitary safety services and improve the taste and competitiveness of washing enterprises.

 Second, the main features

      1. This equipment adopts a tube-type laundry tub and utilizes the uniform distribution of water flow to achieve the purpose of clothing balance. Combined with special shock absorption, the vibration of the whole machine disappears on the shock absorption device (referred to as internal shock absorption) to protect The device and the surrounding environment are convenient for users.

      2. Using washing machine touch screen computer controller and imported inverter, it has high automation, safety, stability and reliability, and realizes the entire process of initial washing, washing, disinfection, cleaning, bleaching and dehydration.

      3. The device is equipped with two control modes, automatic and manual. For manual control, the washing cycle, the number of cleaning cycles, the dehydration time, and the water level control can be selected arbitrarily through the operation button.

      4. The outer cylinder of the machine adopts double-opening door, which separates the user's loading and unloading into two sections, ensuring the requirements of sanitary isolation.

      5. Each control valve of this equipment adopts pneumatic control, which moves quickly and reliably, has no pollution to the surrounding environment, and is easy to maintain.

      6. This equipment has a large diameter water and steam adding device, which is convenient for users to choose.

      7. The equipment's washing tub, outer tube and outer cover are all made of high-quality stainless steel, with smooth surface, high strength, corrosion resistance, beautiful and durable.

      8. The electric control box is connected with the whole machine, which is convenient for installation, small in size, reduced in area, and convenient for transportation and installation.

      9. This equipment has a frame structure at the bottom of the box, which has no water leakage and no pollution to the environment, and can keep the site clean.

      10. This equipment adopts imported brand-name AC motor frequency converter for speed regulation, so it only uses first-level triangular belt drive, which simplifies structure and reduces power loss. Its transmission is stable and reliable, low noise, excessive uniformity when changing speed, and low mechanical failure , Convenient maintenance and more perfect functions.

四、機器安裝

1、安裝準備

1.1設備檢查

當收到機器后，請立即對機器及標志、隨機文件、備品備件進行檢查。如發現機器損壞，并確認是由于運輸過程中造成，請與本公司或經銷商聯系。

隨機文件有：產品合格證、產品使用說明書、洗衣機電腦控制器廠家使用說明書、變頻器使用說明書。

1.2基礎要求

在安裝機器時混凝土基礎必須能夠承受機器兩倍重量，并做好水平.

1.3基礎排布要求

機器的右下部（從裝料門看，下同）有一排水閥門，將廢水排入放水溝槽；右側上部有進冷（熱）水，進蒸汽管口，分別與冷(熱)水與蒸汽源連接。

假如有兩臺以上的相同型號機器并列排布時，必須有一個總排水溝，將每臺機器的排水溝槽聯系起來。機器之間的相對間隔必須在600毫米以上，以利操作與保養維修。

2、吊裝運輸

機器上設有起吊孔，可以用起重機起吊移動機器的安裝位置。如果沒有起重機，可利用圓管墊底滾動的方法使機器就位。

3、機器安裝

機器就位后必須將底部四個腳找平、墊實，最好在四個腳板旁用膨脹螺絲和壓板將地腳壓緊。

4、電力供應

本機需要一個額定頻率為50HZ、額定電壓為380V/220V的電源供入，最大輸入功率及三相四線制電纜的橫截面請見“主要技術參數表”，并加裝一個額定電流為50A的空氣開關（電加熱型需另行計算）。在機器上接好接地保護線，應與可靠的接地保護網連接。

5、冷（熱）水供應

本機設備有冷水入口一個，通經與接頭尺寸見“主要技術參數表”（用戶如需要熱水，可在訂購時提出，加設熱水入口）。通常在冷（熱）水入口管前，要加裝相同通經的手動閥。

6、蒸汽供應

本機設有一個蒸汽入口，其通經與接頭規格見“主要技術參數表”，在入口之前，要加裝一個相同通經的手動閥。

7、壓縮空氣供應

本機需要一個壓力不低于0.5MPa的壓縮空氣源，機器上的接管外經為 8mm，建議用戶使用 Φ8的輸氧管。

8、固定裝置

該設備中使用前需拆去機器運輸專用的固定板后，方可使用。

Fourth, the machine installation

1. Preparation for installation

1.1 Equipment inspection

When you receive the machine, please immediately inspect the machine and signs, random documents, and spare parts. If it is found that the machine is damaged, and it is confirmed that it is caused during transportation, please contact our company or the dealer.

Random documents are: product certificate, product instruction manual, washing machine computer controller manufacturer's instruction manual, inverter instruction manual.

1.2 Basic requirements

When installing the machine, the concrete foundation must be able to bear twice the weight of the machine and be level.

1.3 Basic layout requirements

The lower right part of the machine (from the charging door, the same below) has a drain valve to discharge the waste water into the drain groove; the upper right part has cold (hot) water inlet and steam pipe inlets, which are connected with cold (hot) water and Steam source connection.

If two or more machines of the same model are arranged side by side, there must be a total drainage channel to connect the drainage channel of each machine. The relative distance between the machines must be more than 600 mm to facilitate operation and maintenance.

2.Lifting and transportation

There are lifting holes on the machine, which can be moved by crane to move the installation position. If you don't have a crane, you can roll the bottom of the tube to get the machine in place.

3. Machine installation

After the machine is in place, the bottom four feet must be leveled and padded. It is best to use expansion screws and pressure plates to compress the ground feet next to the four foot plates.

4. Power supply

This machine requires a power supply with a rated frequency of 50HZ and a rated voltage of 380V / 220V. For the maximum input power and the cross-section of the three-phase four-wire cable, please refer to the "main technical parameter table", and add a rated current of 50A. Air switch (electric heating type needs to be calculated separately). Connect the ground protection wire to the machine and connect it to a reliable ground protection network.

5. Cold (hot) water supply

This machine has a cold water inlet. For the dimensions of the joints and joints, please refer to the "Main technical parameter table" (If users need hot water, they can ask for it when ordering, and add a hot water inlet). Normally, a manual valve with the same passage must be installed before the cold (hot) water inlet pipe.

6.Steam supply

This machine is equipped with a steam inlet. For the specifications of the passage and joints, please refer to the "Main Technical Parameter Table". Before the inlet, a manual valve with the same passage must be installed.

7.Compressed air supply

This machine requires a compressed air source with a pressure of not less than 0.5 MPa. The external diameter of the pipe on the machine is 8mm. It is recommended that users use a Φ8 oxygen pipe.

8.Fixing device

Before using this equipment, the fixing plate for machine transportation must be removed before use.
