床單折疊機Folding machine
供床賓館酒店床單被套折疊機(折疊機價格,折疊機廠家)
折疊機,床單折疊機、被套折疊機、毛巾折疊機、布草折疊機,折疊機型號:ZD-3000單通道五折,ZD-3000雙通道五折,ZD-3300四通道五折,ZD-3300四通道五折,注:四通道可以用于折疊枕套。
性能簡介
1、電腦板智能選擇折疊折數,可達到兩橫三縱共五折的折疊功能。最大折疊范圍3000*3000mm,可與不同型號的燙平機配套使用,達到自動折疊各種布草的效果。
2、引進行業領先設計理念,該款折疊機配有四個電機兩個變頻器,優化分工、管理了折疊機的各個折疊步驟,有效的提高了布草的折疊率。
3、機器采用PLC可編程控制器,抗干擾性強。智能化的120度可旋轉液晶顯示觸摸屏操作系統,具有良好的人機界面,完善的自診斷功能和安全保護系統便于機器的日常使用和維護。
4、國內首創的防靜電擋板及防靜電傳送帶很好的預防了布草的靜電現象,增加了機器的工作可靠性和穩定性。
5、獨特的五折吹氣法,有別于行業的刀送法,有效的保護了布草,延長了布草的使用壽命。
Folding machine for bed hotel hotel sheets quilt cover (folding machine price, folding machine manufacturer)
Folding Machine, Sheet Folding Machine, Quilt Cover Folding Machine, Towel Folding Machine, Linen Folding Machine, Folding Machine Model: ZD-3000 single channel 50% off, ZD-3000 double channel 50% off, ZD-3300 four channel 50% off, ZD -3300 Four-way 50% off. Note: Four-way can be used to fold pillowcases.
Performance Introduction
1. The computer board intelligently selects the number of folding folds, which can achieve a folding function of a total of 50% in two horizontal and three vertical directions. The maximum folding range is 3000 * 3000mm, which can be used with different models of ironing machines to achieve the effect of automatically folding various linens.
2. Introducing the industry-leading design concept. This folding machine is equipped with four motors and two frequency converters, which optimizes the division of labor and manages each folding step of the folding machine, effectively improving the folding rate of linen.
3. The machine adopts PLC programmable controller with strong anti-interference. Highly intelligent 120 degree rotatable LCD touch screen operating system, with good human-machine interface, complete self-diagnostic function and safety protection system are convenient for daily use and maintenance of the machine.
4. The first domestic anti-static baffle and anti-static conveyor belt can prevent the static phenomenon of linen, and increase the reliability and stability of the machine.
5. The unique 50% air blowing method is different from the knife feeding method in the industry, which effectively protects the linen and extends the life of the linen.

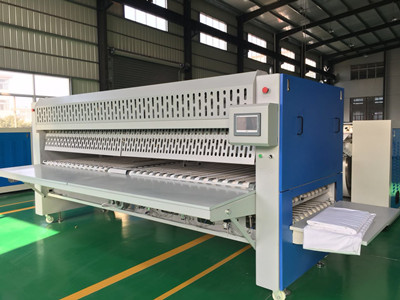

ZDJ-3300床單、被套折疊機 (五折)
ZDJ-3300 Sheet and Quilt Folding Machine (50% off)
參數型號 | 單位 | ZD3300/ZD3300/ |
最大折疊長度 | mm | 3200 |
最大折疊寬度 | mm | 3000 |
工作能力 | m/min | 30 |
使用氣源壓力 | MPa | 0.5-0.7 |
電源 | V/P/Hz | 380/3/50 |
耗電量 | kw/h | 2.0 |
壓縮空氣消耗量 | L/min | 約80 |
電機功率 | kw | 1.5kw+0.55kw+0.55kw |
外接電源線徑 | mm2 | 4 |
配用壓縮機排量 | m3/min | 0.3 |
外型尺寸(長×寬×高) | mm | 4500×2950×1990 |
整機重量 | kg | 1500 |
注:由于設備不斷升級換代,本資料中的產品參數及外觀僅供參考,如有變動,以實際產品為準!
